uBLOX ZED-X20P Expansion for Raspberry Pi

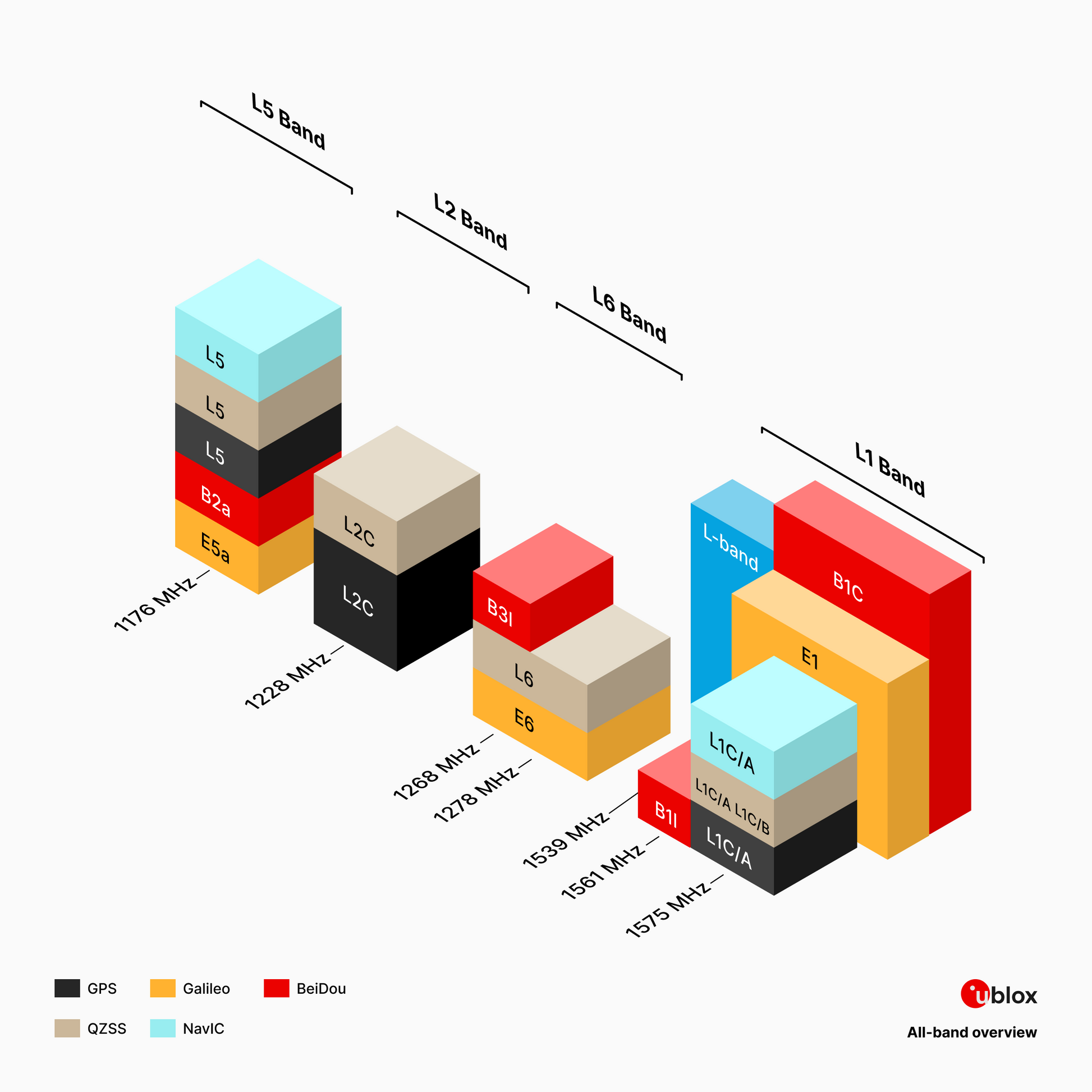

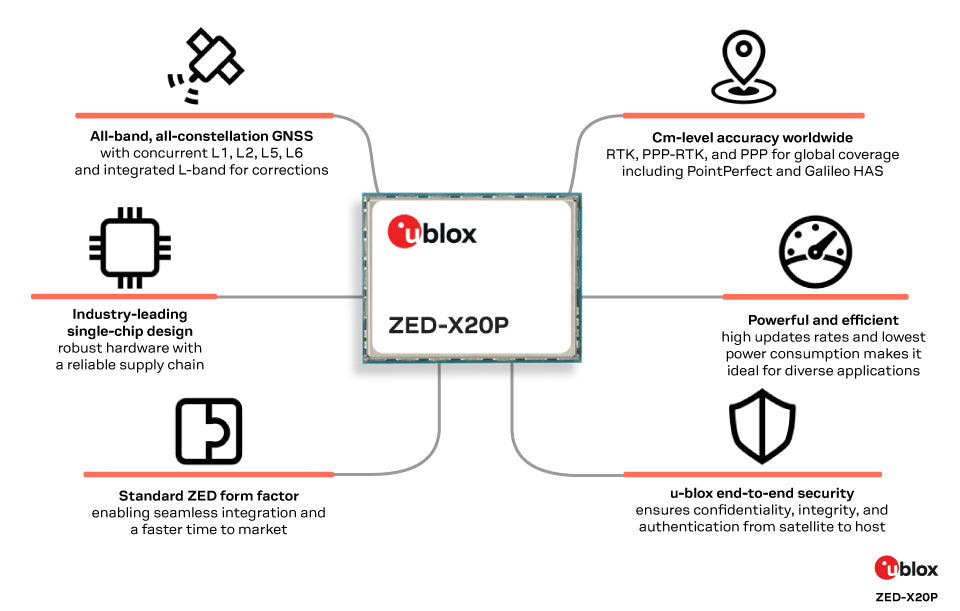

The Uputronics uBLOX ZED-X20P Expansion for Raspberry Pi provides a u-blox X20 all band (L1/L2/L5/L6/L-Band ) high precision GNSS module with quick no soldering required connection to all Raspberry Pi boards with the 2x20 header (the original Pi Model A/B are not supported).

Reciever Type: 672 channel u-Blox X20 Engine

GPS L1C/A, L2C, L5
GAL E1, E5a, E6
BDS B1I, B1C, B2a, B3I
QZSS L1C/A, L1C/B, L2C, L5, L6
NavIC L5
SBAS L1

Navigation Update Rate RTK : Up to 25 Hz

Positional Accuracy :

Standalone 1.2 m
SBAS 0.6 m
RTK 0.6 cm + 1 ppm
PPP-RTK < 6 cm

Memory: Flash
Interfaces: USB/Serial/I2C
Time Pulse: 0.25Hz to 10MHz
Protocols: NMEA 4.11, UBX binary, RTCM v. 3.4, SPARTN v. 2.0.2
Operational/Storage Temp: −40 °C to +85 °C
L Band Support : Integrated 1539-1559MHz

Featuring PPS (Pulse per second) output to permit the use of the board for PPS disciplined NTP servers (GPIO18),  Carrier phase output available and super cap for GPS hot start/setting retention.

USB-C Header supporting power means the board can be used independently of the Raspberry Pi with any Windows, Linux or Mac computer.

This board retains backwards compatibility with previous generation Uputronics Raspberry Pi GPS boards.

Supplied with header kit for mounting to Raspberry Pi 4 and earlier boards and Raspberry Pi 5 with heatsink.

Recommended antenna : uBLOX ANN-MB3 Active Multiband Antenna

uBLOX Documentation:

ZED-X20P Datasheet
ZED-X20 Interface Description

Datasheet TBC

Pinouts : TBC
