uBlox ANN-MB2 Active GPS Patch Antenna with SMA Connector ANN-MB2-00-00

The latest uBLOX ANN-MB2 (ANN-MB2-00-00) all band antenna from uBlox with an SMA connector supplied with 5m RG174 cable.

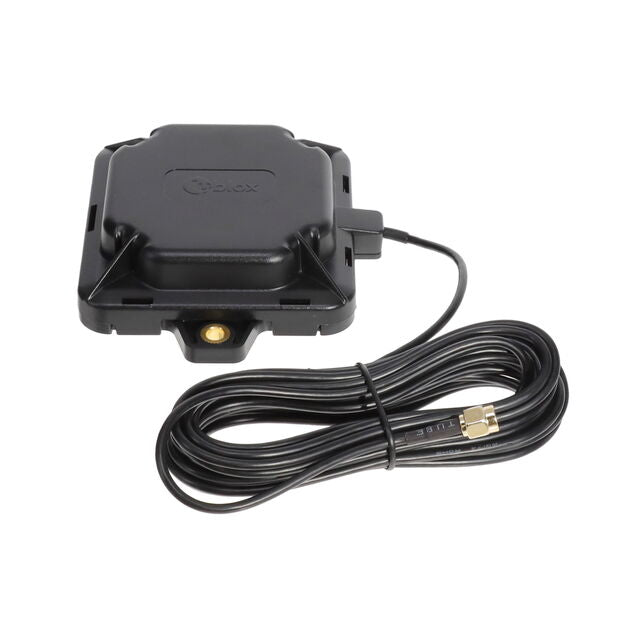

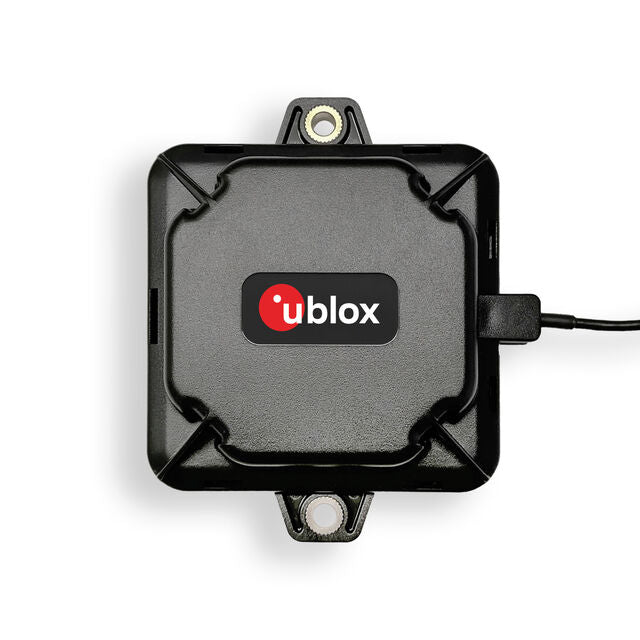

All-band, high precision GNSS antenna supplied with 5 meter cable terminated with an SMA male. Supplied in a water proof package 108.5 x 92.9 x 24.7 mm with a magnetic base. and screw mounting holes (2 x M5.5 Screws). Weight 260g.

The u-blox ANN-MB2 All-band (L1/L2/L5/E6/B3/L) active GNSS antenna is designed to reduce time-to-market for modern multi-frequency, multi-constellation, high precision GNSS applications, which require centimeter-level accuracy and a reliable RTK positioning fix even in challenging environments.

ANN-MB3 integrates an additional SAW filters in L1 RF & L2/L5/E6 path, and provides the best possible out-of-band interference mitigation. The ANN-MB2 antenna is a perfect solution for the u-blox all-band F20 high precision platform (e.g. ZED-F20P)

• All-band (L1/L2/L5/E6/B3/L) active GNSS antenna
• Supports all major GNSS systems for maximum position availability
• Fast and easy antenna solution for high precision applications
• Versatile mounting and connector options


Datasheet : ANN-MB2 Data sheet
