uBLOX ZED-F20P Expansion for Raspberry Pi

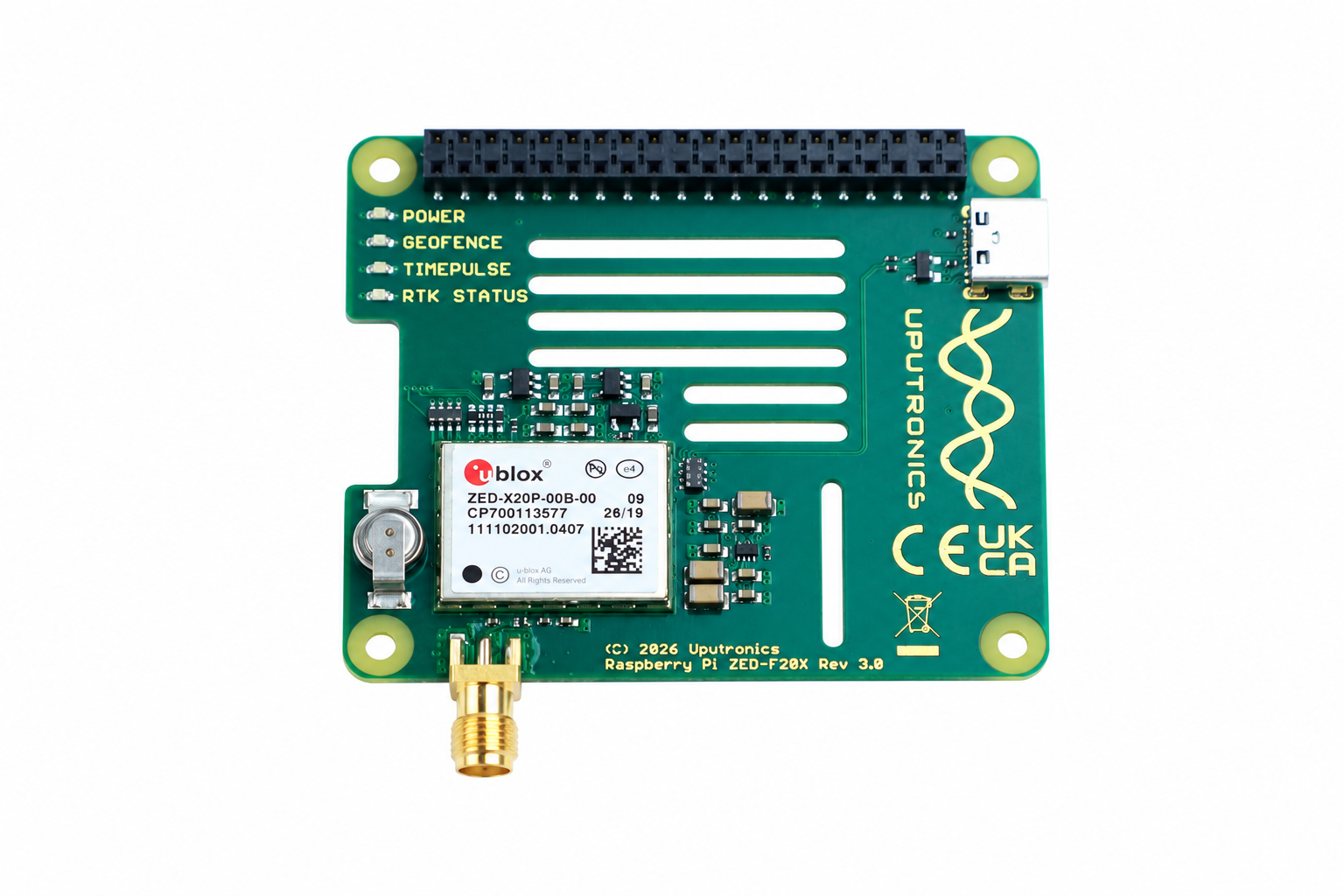

The Uputronics uBLOX ZED-F20P Expansion for Raspberry Pi provides a u-blox F20 triple-band (L1/L2/L5) high precision GNSS module with quick no soldering required connection to all Raspberry Pi boards with the 2x20 header (the original Pi Model A/B are not supported).

Reciever Type: 672 channel u-Blox F20 Engine

GPS L1C/A, L2C, L5
GAL E1B/C, E5a
BDS B1I, B1C, B2a
QZSS L1C/A, L1C/B*, L2C, L5
NavIC L1*, L5
SBAS L1C/A
Unofficially supports GLONASS

Navigation Update Rate RTK : Up to 25 Hz

Positional Accuracy :

Standalone 1.2 m
SBAS 0.6 m
RTK 0.6 cm + 1 ppm
PPP-RTK < 6 cm

Memory: Flash
Interfaces: USB/Serial/I2C
Time Pulse: 0.25Hz to 10MHz
Protocols: NMEA 4.11, UBX binary, RTCM v. 3.4, SPARTN v. 2.0.2
Operational/Storage Temp: −40 °C to +85 °C

Featuring PPS (Pulse per second) output to permit the use of the board for PPS disciplined NTP servers (GPIO18),  Carrier phase output available and super cap for GPS hot start/setting retention.

USB-C Header supporting power means the board can be used independently of the Raspberry Pi with any Windows, Linux or Mac computer.

This board retains backwards compatibility with previous generation Uputronics Raspberry Pi GPS boards.

Supplied with header kit for mounting to Raspberry Pi 4 and earlier boards and Raspberry Pi 5 with heatsink.

Recommended antenna : uBLOX ANN-MB3 Active Multiband Antenna
