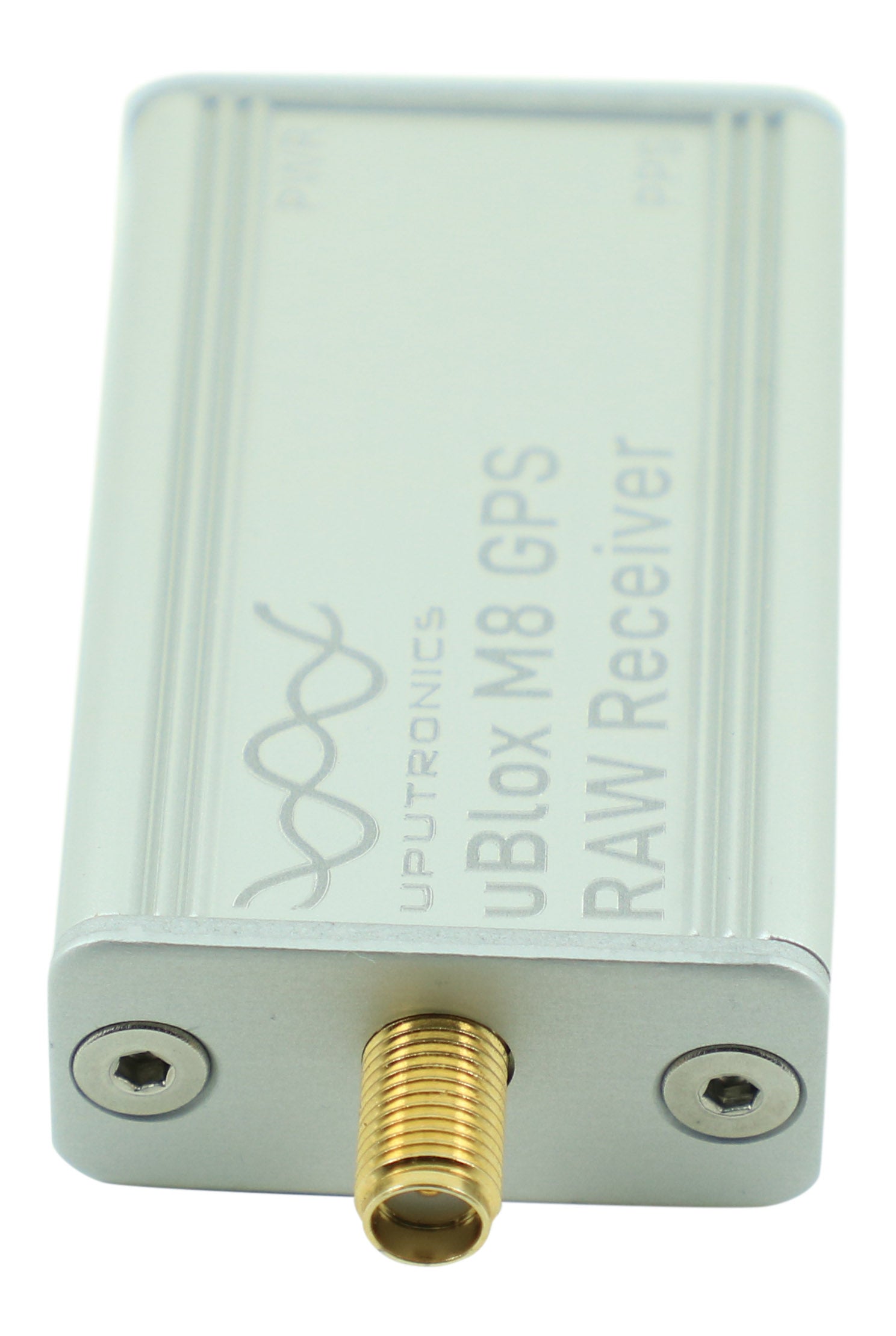

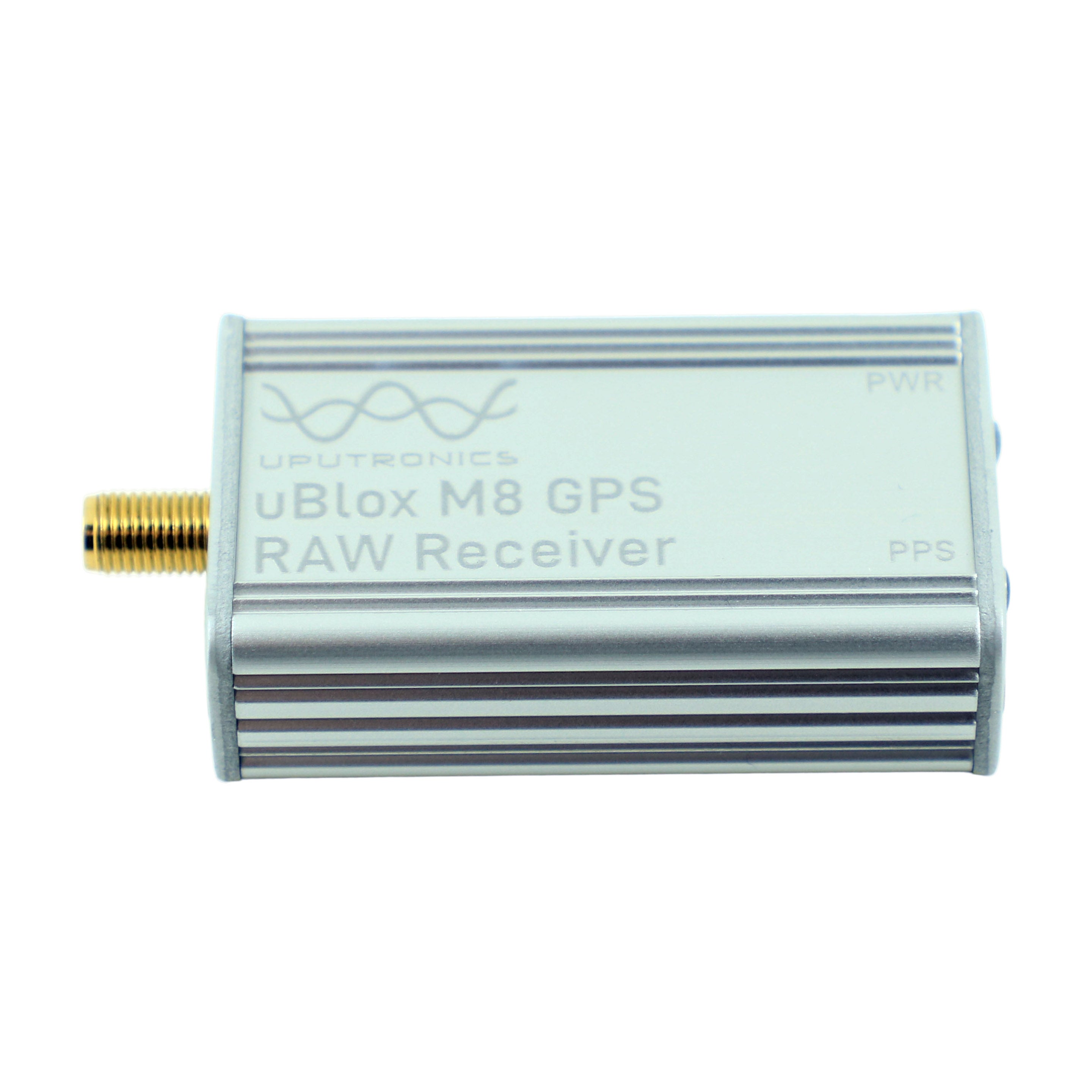

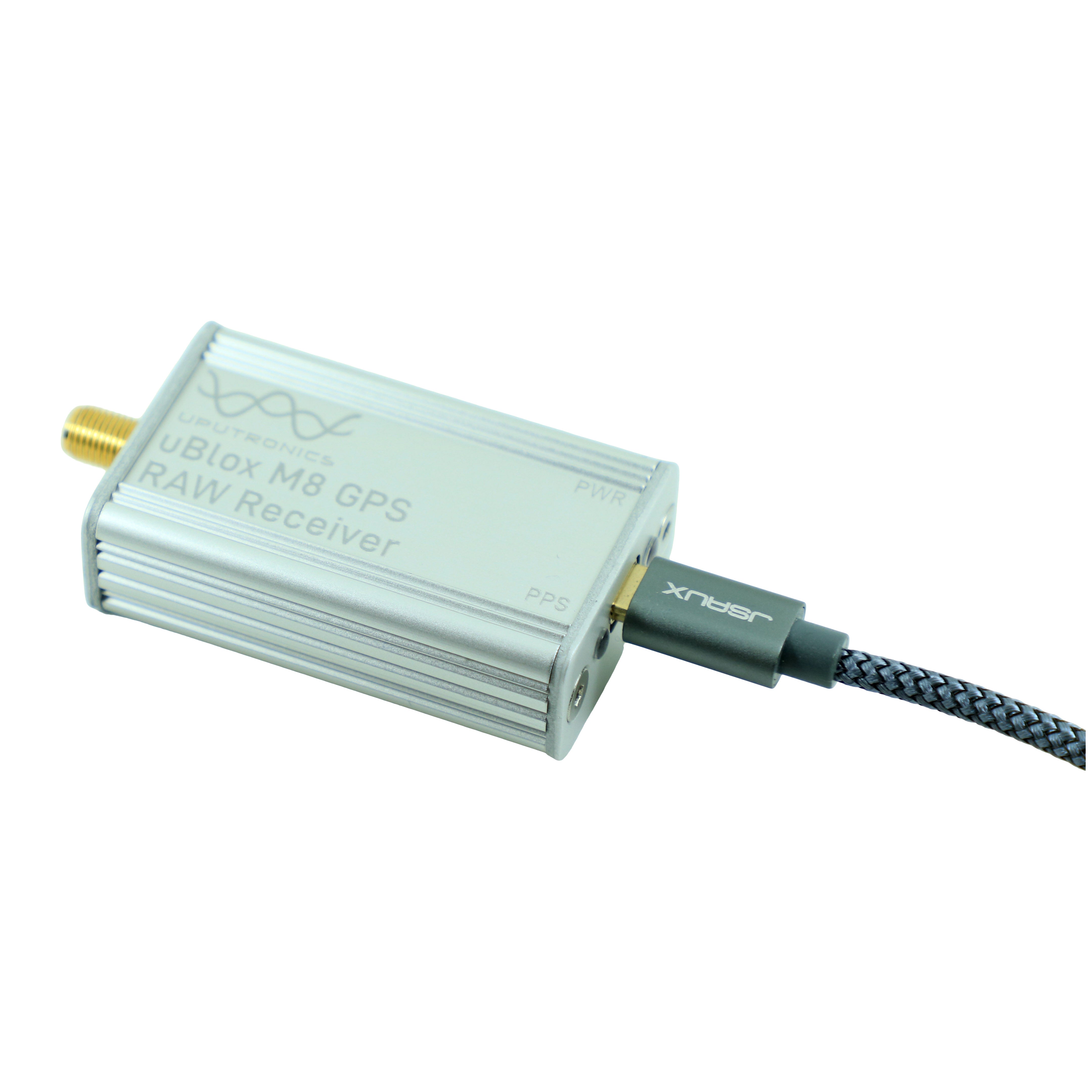

uBlox M8 USB Dongle

The uBlox M8 USB Dongle provides a modern multi GNSS GPS receiver in a compact package with a mini-B USB connection to connect to your PC/Mac/Linux machine.

GPS Specifications:

• 72-channel u-blox™ M8 engine
• Up to 3 concurrent GNSS (BeiDou, Galileo, GLONASS, GPS/QZSS)
• Default GNSS: GPS/GLONASS.
• -167dBm Navigation Sensitivity
• 10Hz navigation rate in multiGNSS mode, 18Hz in GPS only
• RAW Output available via UBX-RXM-RAWX Message
• 3V supplied to antenna port to power active antenna
• Antenna requirements: Active 3V (See related items)
• Flash to save settings/config and/or saved to battery backed RAM.
• Default baud rate: 115200bps

For full documentation please consult the u-blox 8/u-blox M8 receiver description including protocol specification document (UBX-13003221) linked here: https://store.uputronics.com/files/UBX-13003221.pdf

Case Specifications:

• high Quality Extruded aluminium Case
• Power and PPS indicator LED's

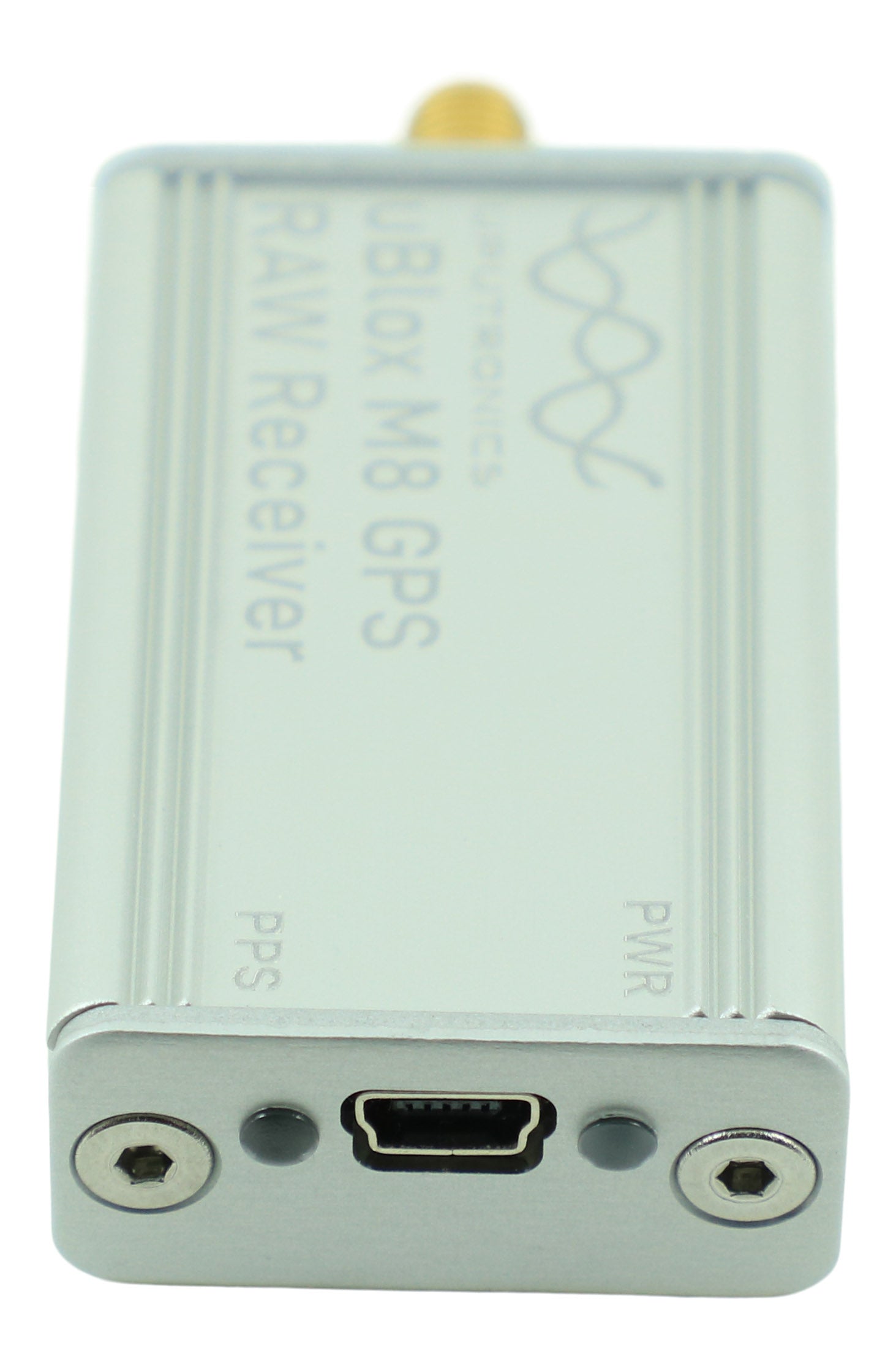

• USB Mini-B Header for connection to anything that supports USB to serial

In The Box:

1 x uBlox M8 USB Dongle
1 x USB A to MiniB Cable
