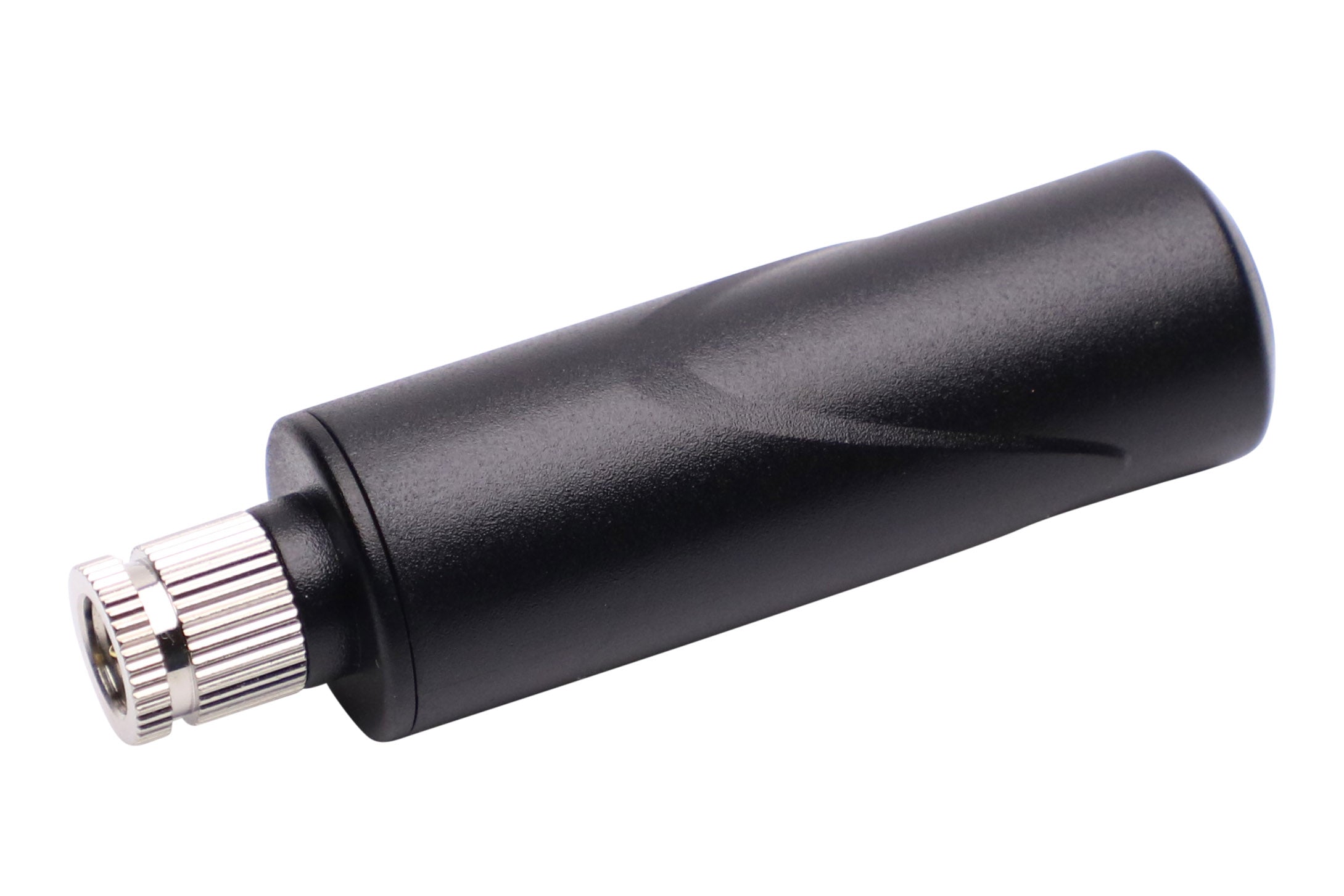

GPS Stubby Antenna SMA-Male Straight

The GPS-Stubby antenna is a direct-mount GPS Stubby active GPS stubby antenna designed for applications where cabled GPS antennas are unsuitable or inconvenient.

With an effective gain including LNA of approximately 26 dB, the GPS Stubby is a high performance stubby antenna for mobile terminal applications.

This version of the antenna has a SMA-Male Straight connector. Suitable for connection to any of our GPS enabled boards.

Specifications:

Frequency range:   1575.42 ±1.023 MHz
Polarisation:            RHCP
Impedance:             50 Ohm
VSWR:                     <2.0:1
LNA Gain:                26 dB ±2 dB
Noise Figure:          1.1dB (Typical)
Band Attenuation:  20dB min @Fo ±50 MHz
Input Voltage:         DC +3.0 V ( ±0.3V )
Current:                  20mA (max)
Operating Temperature -30 to +70 degrees C
Weight                   20g

Dimensions ST version - 67mm x 18.5mm (h x d)
